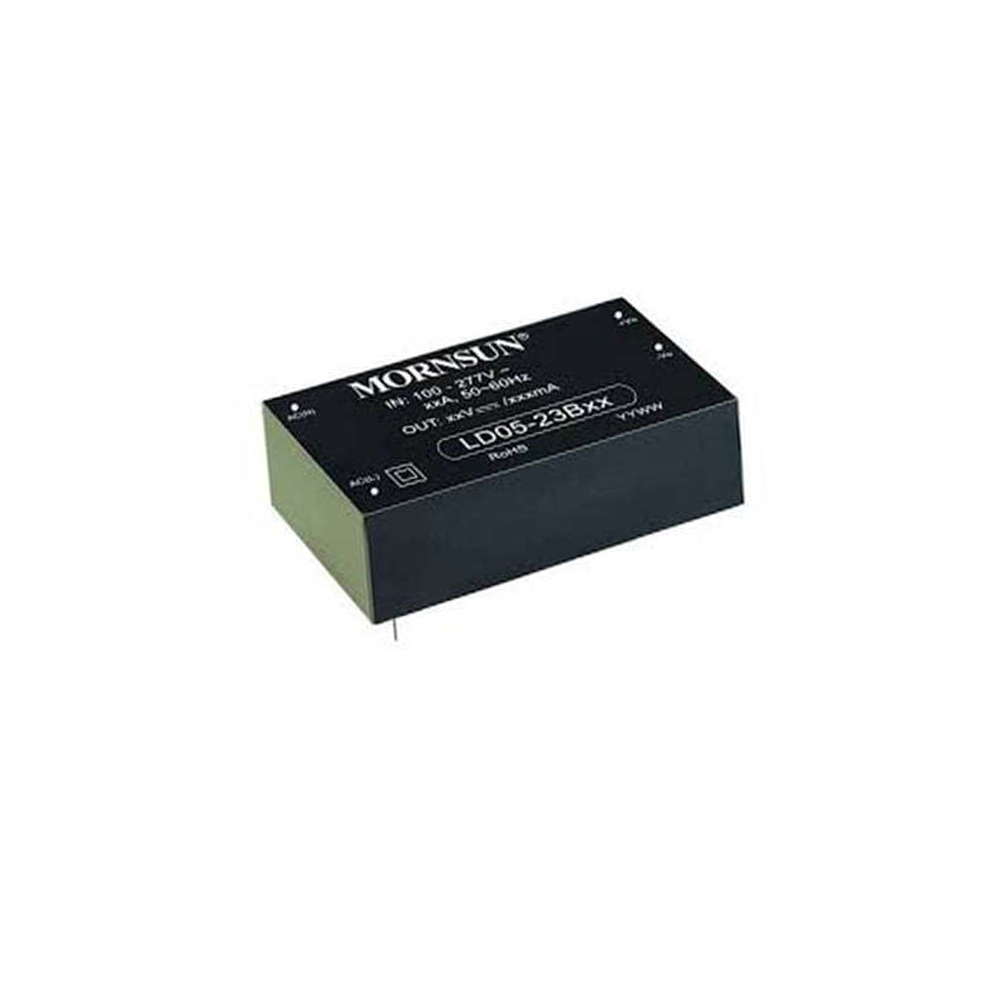

LD05-23B15R2 : 5W
LD05-23B15R2 : 5W,15V PCB Mountable-Isolated AC-DC Converter Features:
· Ultra-wide 85 - 305 VAC and 100 - 430 VDC input voltage range
· 1 × 1 inch compact size
· Operating ambient temperature range: -40℃ to +85℃
· Up to 81.5% efficiency
· No-load power consumption 0.1W
· 5000m altitude application
· Plastic case meets UL94V-0 flammability
· EMI performance meets CISPR32/EN55032 CLASS B, EN55014
· IEC/EN/UL62368/EN60335/EN61558 safety approval CB RoHS
· Ultra-wide 85 - 305 VAC and 100 - 430 VDC input voltage range
· 1 × 1 inch compact size
· Operating ambient temperature range: -40℃ to +85℃
· Up to 81.5% efficiency
· No-load power consumption 0.1W
· 5000m altitude application
· Plastic case meets UL94V-0 flammability
· EMI performance meets CISPR32/EN55032 CLASS B, EN55014
· IEC/EN/UL62368/EN60335/EN61558 safety approval CB RoHS
- Specifications
- Download
- Case Material Black plastic, flame-retardant and heat-resistant (UL94V-0)
- Dimension Horizontal package 25.40 x 25.40 x 17.60 mm
- A2S mounting 76.00 x 31.50 x 26.40 mm
- A4S mounting 76.00 x 31.50 x 31.00 mm
- Weight Horizontal package 3.3V/5V/9V/12V 18.0g (Typ.)
- A2S mounting 38.0g (Typ.)
- A4S mounting 58.0g (Typ.)
- Cooling method Free air convection
PCB Mountable-Isolated AC-DC Converter Specifications:
