• LS10-13B12R3
LS10-13B12R3 new-products

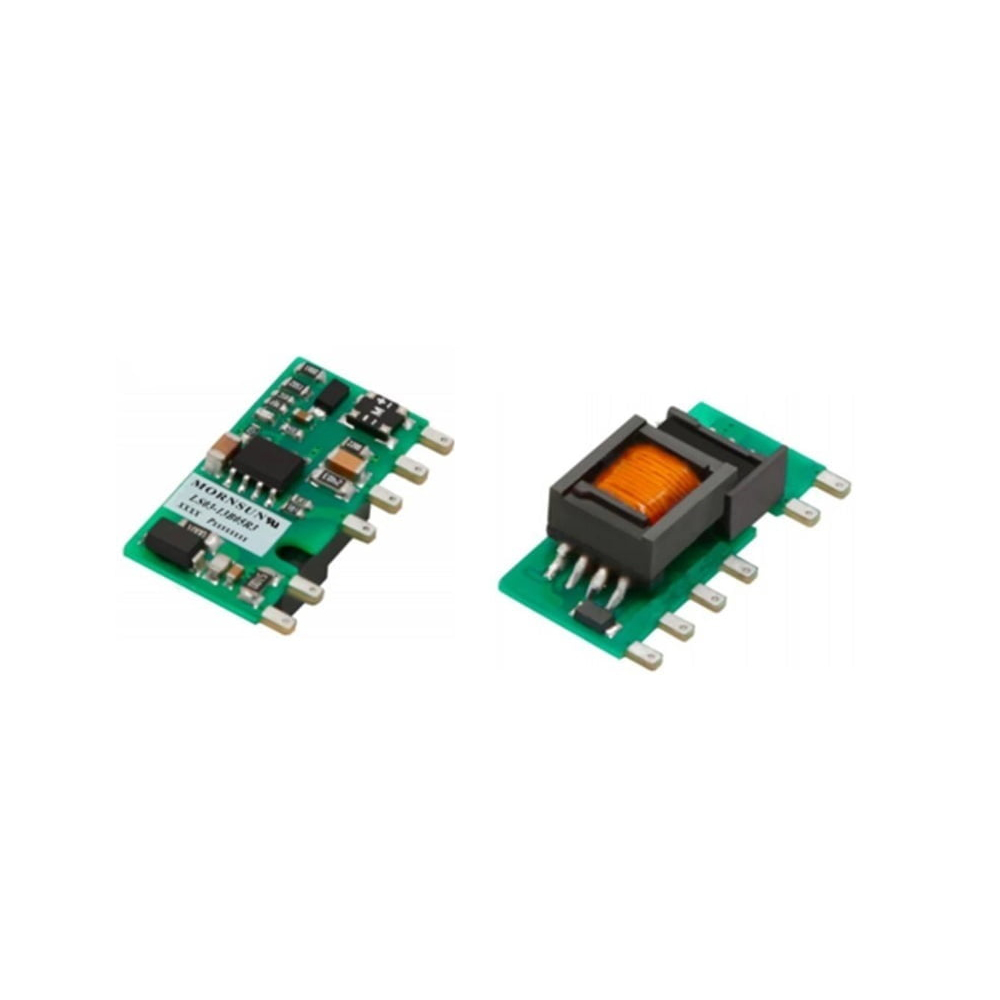

LS10-13B12R3 : 10W , 12V AC-DC Converter Features:

· Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
· Accepts AC or DC input (dual-use of same terminal)
· Operating ambient temperature range -40℃ to +85℃
· Multi application, flexible layout
· Compact size, high power density, green power
· No-load power consumption as low as 0.1W
· Output short circuit, over-current, over-voltage protection
· Designed to meet IEC/EN61558, IEC/EN60335 standards
· IEC/EN/UL62368 safety approval
  • Specifications
  • Download
    LS10-13B12R3 : 10W , 12V AC-DC Converter Mechanical Specifications:
    • Dimension : 32.00 x 17.20 x 15.05 mm
    • Weight : 8.2g (Typ.)
    • Cooling method : Free air convection
